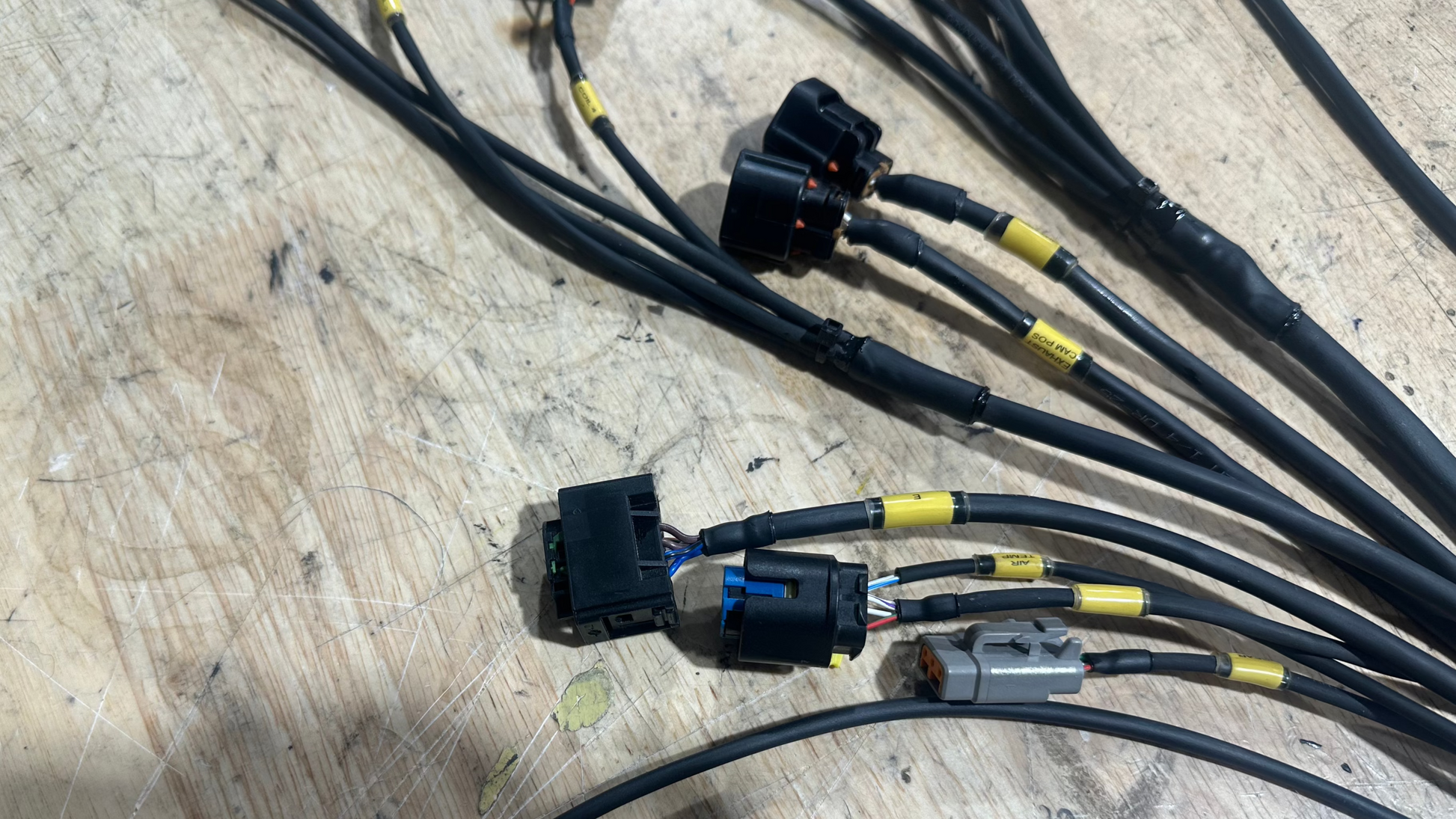

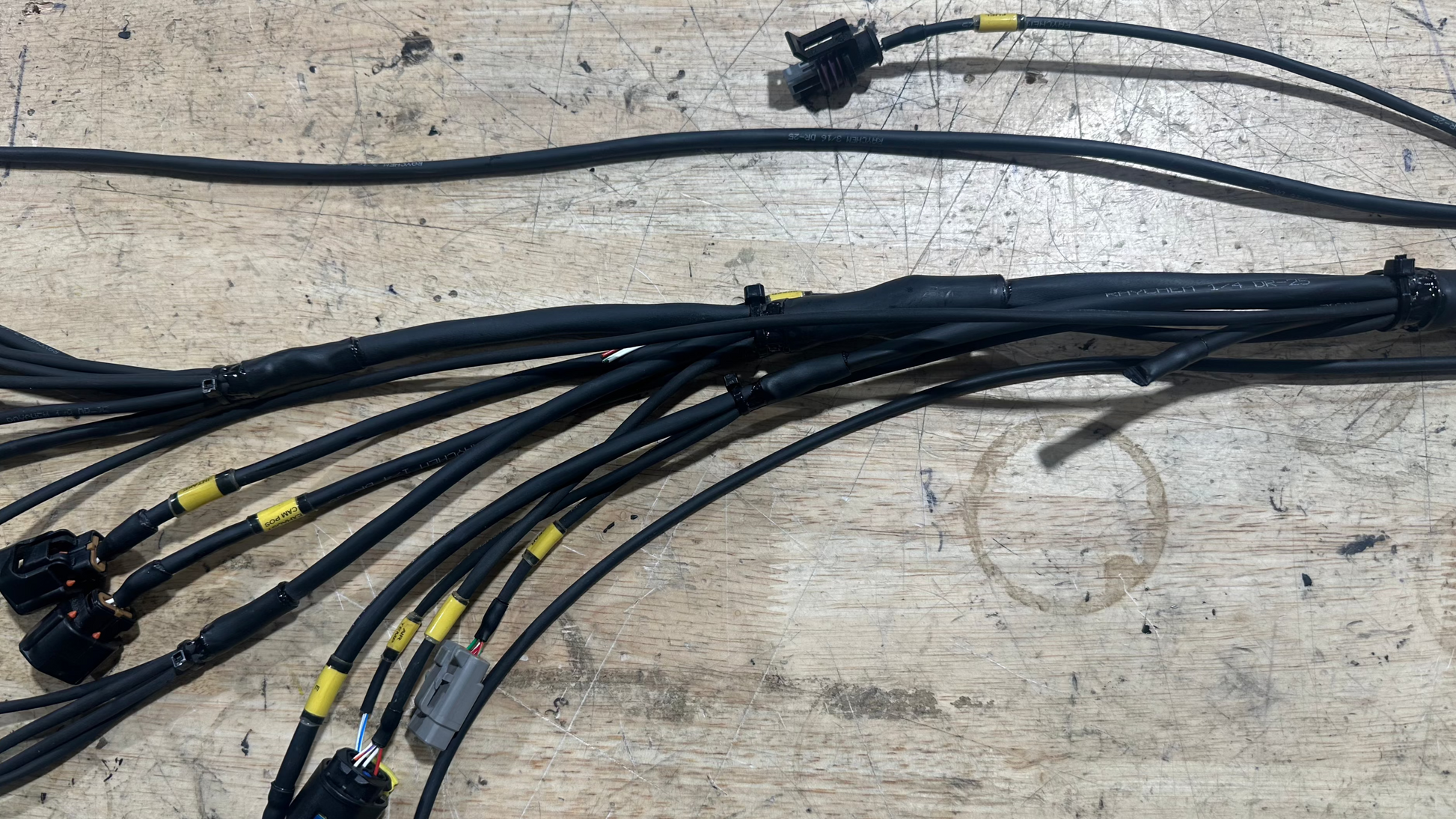

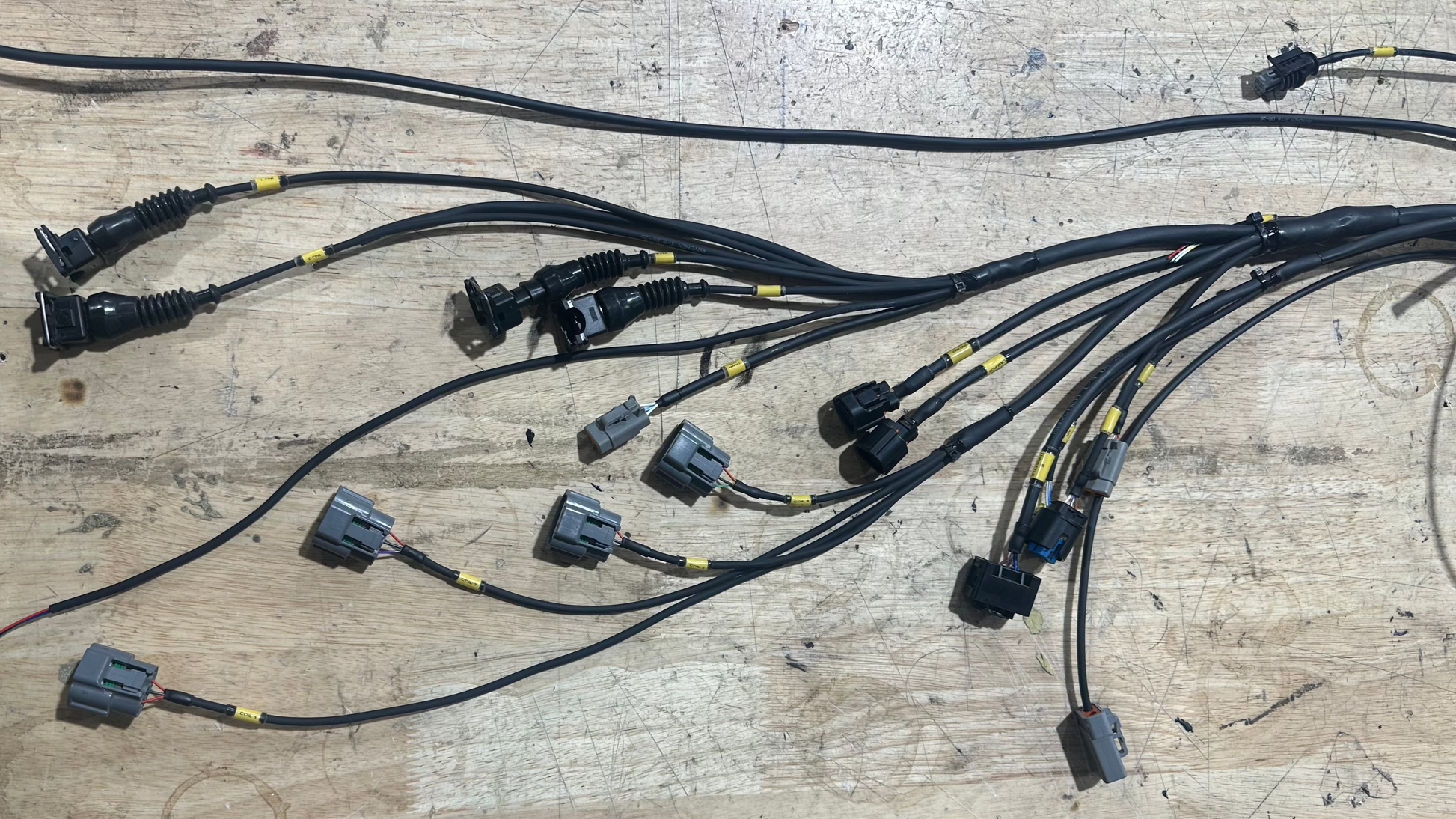

Mitsubishi Evo 1 2 3 Milspec Engine Conversion Loom

Milspec Mitsubishi Evo 1 / 2 / 3 - late model 4G63 engine conversion (Evo 4-9).

Fits the following Vehicles

• Mitsubishi Lancer Evolution 1
• Mitsubishi Lancer Evolution 2
• Mitsubishi Lancer Evolution 3

Plug and play no wiring needed for factory car, remove existing wiring loom and ECU and install new loom and aftermarket ecu in factory location. Can be built to suit any aftermarket ECU.

Note: Wired for COP using R35 Coils, Includes connections for wipers, window/Intercooler sprayer, brake fluid level, radiator fan wiring. Injectors must be changed to high impedance injectors as the factory ballast resistor will be deleted.

Milspec Wire: Built to withstand extreme conditions, ensuring reliability on the road.

DR25 Heatshrink: Provides excellent insulation and protection against heat and abrasion.

Brand New Connectors: All connectors are brand new and ready for installation, ensuring a perfect fit. We prioritise genuine connectors whenever possible, and when they are not available, we use high-quality replacement connectors to ensure reliability and performance.

Clearly Labeled: Each branch of the loom is clearly labeled for easy identification and installation.

Allowance for additional connections: Including provisions for a fuel pressure sensor, flex fuel sensor and a 4 pin DTM Deutsch connector to connect CAN Bus devices such as a digital dash or a wideband O2 sensor.

Option for sequential gearbox control ie Gear position sensor/Strain gauge connectors.

Comes with documentation showing ECU/Connector pinouts etc

At Evolving Motorsport we also offer custom wiring loom solutions tailored to your specific setup from street cars to full race cars.

Please Note: Depending on ECU this item may need to be made to order please allow 7-10 days.
