Evolving Motorsport
Link E-Throttle Accelerator Pedal Module (PED)
Link E-Throttle Accelerator Pedal Module (PED)
Regular price
$391.00 NZD
Regular price
Sale price
$391.00 NZD
Unit price
/
per
Couldn't load pickup availability

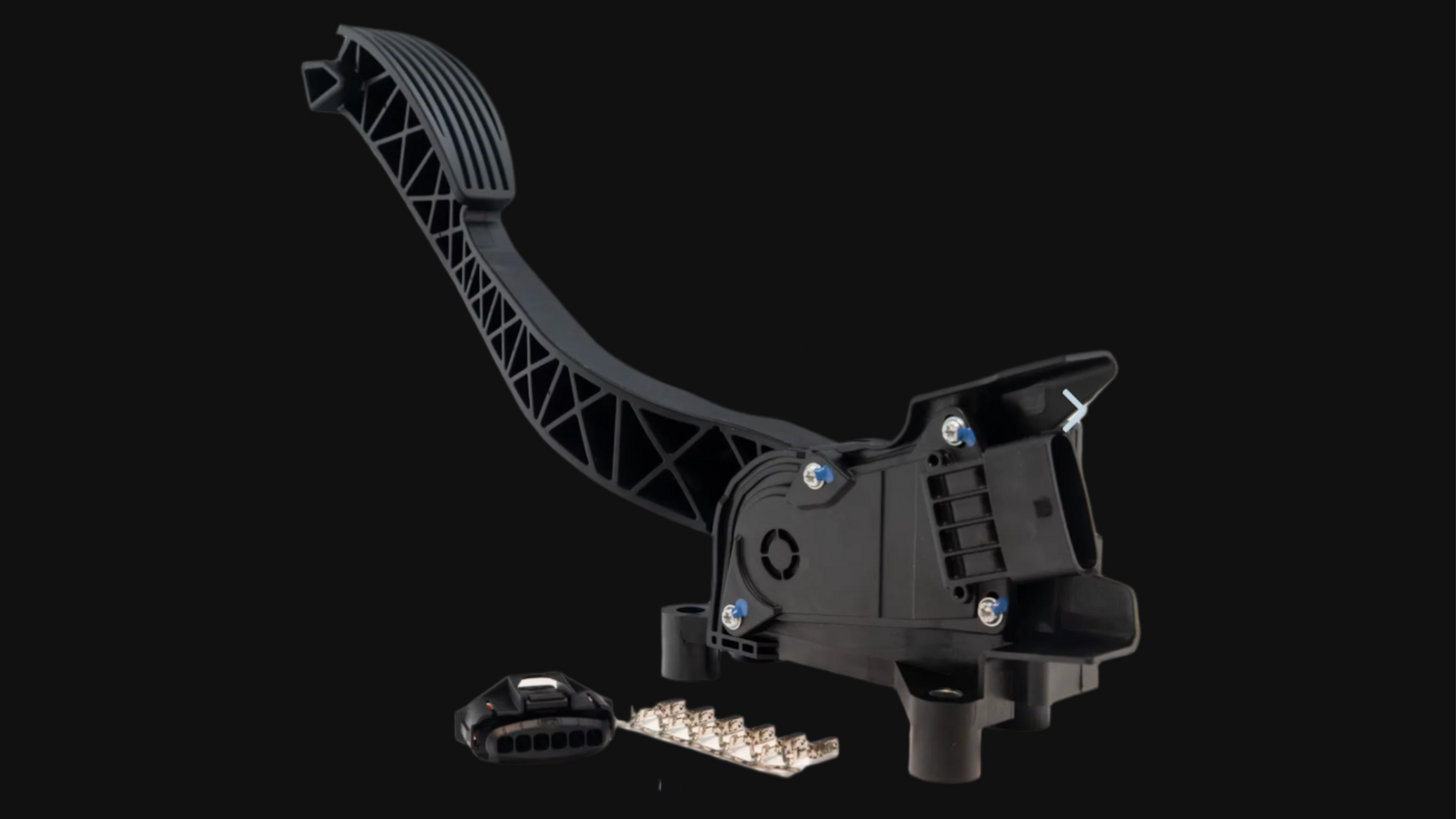

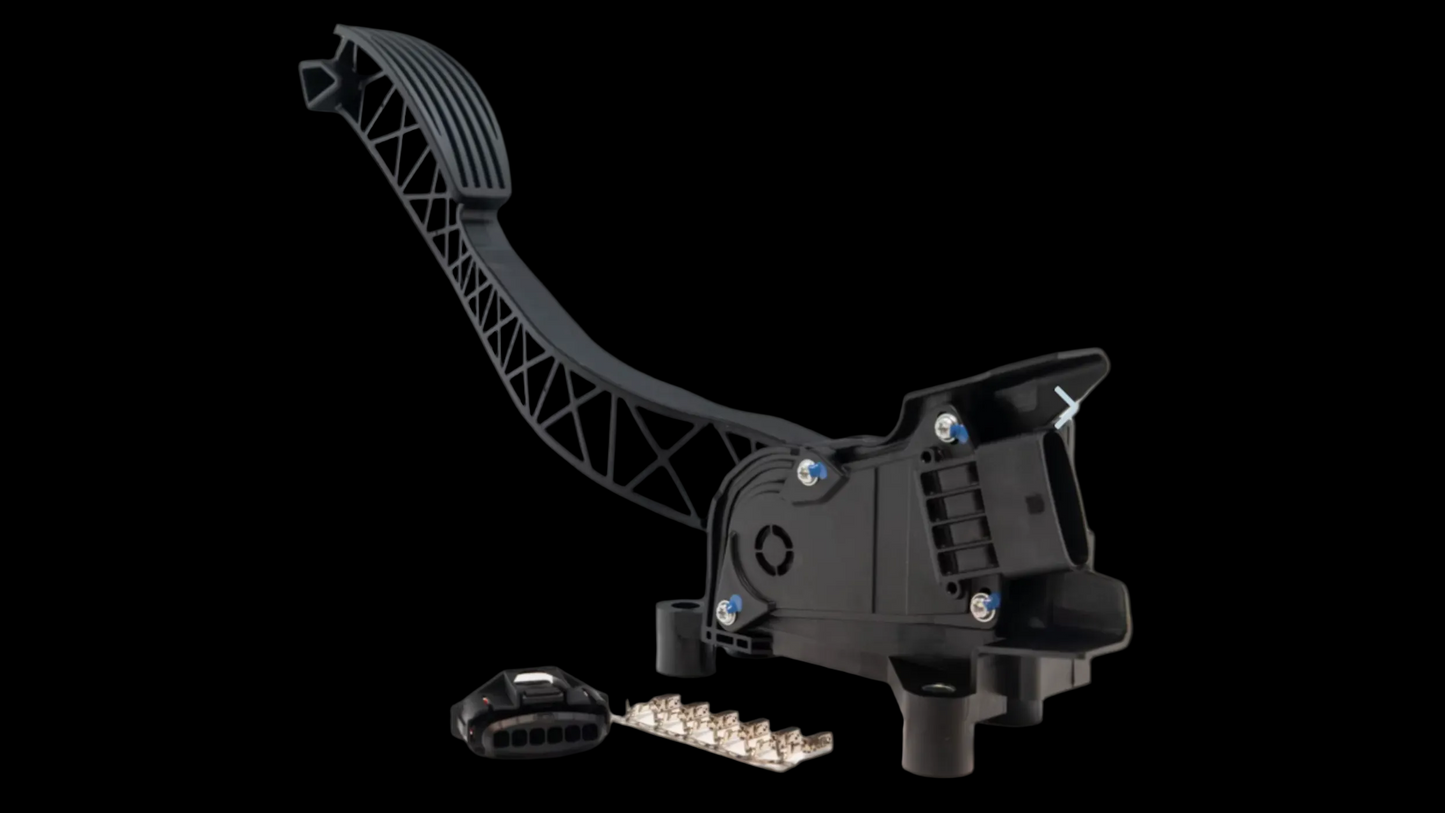

E-Throttle Accelerator Pedal Module
Technical Specs:
See attached image.
Further details on E-Throttle setup can be found in the PC Link helpfile.
- Firewall mounted hanging design
- 16degree (~70mm) travel
- Redundant dual output potentiometers suitable for use with Electronic throttle bodies
- Includes 6 pin mating connector kit
Technical Specs:
See attached image.
Further details on E-Throttle setup can be found in the PC Link helpfile.
Pin 1 = 5V Pin 2 = 5V Pin 3 = Sensor Ground Pin 4 = AP Main Output Pin 5 = Sensor Ground Pin 6 = AP Sec Output
