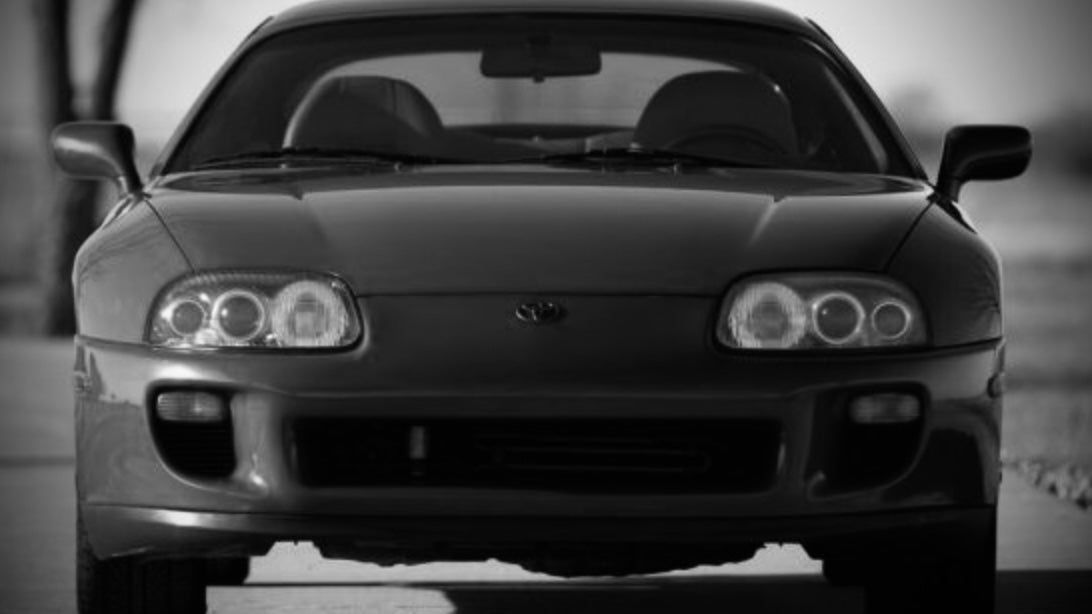

The Toyota Supra MK4 is one of the most iconic JDM cars of all time, and for good reason. Its legendary 2JZ-GTE engine is famous for handling massive power when built correctly, and the chassis can back it up both on the street and the track. Hitting 1000 horsepower is a serious goal, but with the right parts and attention to detail, it’s very achievable. This guide outlines the key upgrades needed to take a Supra to the four-digit mark safely and reliably.
Engine Internals: Building a Bulletproof 2JZ
The stock 2JZ bottom end is famously strong, but 1000hp is well past the comfort zone of factory rods and pistons. A full engine build is required. Many builders retain the OEM crankshaft as it is forged from the factory, but billet and aftermarket cranks from Nitto, Manley and Dart are available for reliability in high HP applications.
Forged pistons from CP, JE, or Wiseco are standard choices, paired with H-beam or I-beam connecting rods from Carrillo, Manley, or Nitto. A compression ratio around 8.5:1 to 9.0:1 is ideal for high boost on pump fuel or E85. Coatings on pistons and bearings improve durability under extreme heat and load.
Cylinder head work is just as critical. Porting and polishing, oversized valves, upgraded springs, and shimless buckets help keep the valvetrain stable at high RPM. Pair this with high-lift, long-duration cams (272–280 range) from Kelford, HKS, or Tomei to maximise airflow and top-end power.
To hold it all together, use ARP L19 or CA625+ head studs, an MLS head gasket, and ACL race bearings. For oiling, upgrades are non-negotiable at this level. A crank collar modification, high-flow oil pump from Nitto or PRP, and a baffled sump or extended oil pan are essential. For serious track use, a dry sump setup is the ultimate option.
Turbocharger: Big Single Setup
At 1000hp, the factory sequential twin-turbo system is long gone. A large-frame single turbo conversion is required, typically in the 76–80mm range, which provides the necessary airflow while keeping spool manageable on a 3.0L 2JZ. Popular choices include the Garrett G42-1200, Precision 7685 or 8285, and BorgWarner S476. These turbos can reliably deliver 1000hp with good midrange response when paired with the right manifold and supporting mods.
For those willing to accept a little more lag in exchange for additional headroom, larger options such as the Precision 8685 or BorgWarner S488 can also be used, supporting up to 1200–1500hp depending on setup.
The turbo setup should include a high-flow twin-scroll manifold, custom dump pipes, and a 3.5–4 inch downpipe. External boost control is best handled with dual 44–50mm wastegates from brands like Turbosmart or Tial, ensuring stable boost at high pressure. An air-to-air intercooler with at least a 4” thick core and matching 3.5” piping keeps intake temperatures under control during sustained boost.
ECU and Tuning: Controlling the Beast
A standalone ECU is essential, with proven options including the Haltech Elite 2500, Link G4X Fury, or Motec M150. These systems provide full control over fuel, ignition, boost, and safety strategies.
Key features like speed-density tuning, flex-fuel capability, knock detection, and CAN integration are must-haves. Advanced functions such as boost-by-gear, rolling anti-lag, and closed-loop fuelling help manage power delivery and protect the engine. Choosing an experienced 2JZ tuner is just as important as the hardware—this is not the place to cut corners.
Wiring and Sensors
At 1000hp, electrical reliability is just as important as mechanical strength. A custom milspec wiring loom using Tefzel wire and DR25 heat shrink is highly recommended. Proper sensors for oil pressure, fuel pressure, coolant pressure, turbo speed, exhaust gas temperature, and back pressure give the ECU the data it needs to keep the engine safe.
A relocated battery and upgraded power distribution system ensure voltage stability. For monitoring, a CAN-based digital dash such as the Haltech IC7, Link MXG/MXS Strada, or Motec C125 provides configurable readouts and data logging. All of these dashes are cross-compatible with modern standalone ECUs, so the choice often comes down to user preference and integration.
Fuel System: Feeding the Beast
Making 1000hp, especially on E85, requires a serious fuel system. Dual injector setups are common, with primary injectors around 1000–2000cc (e.g., Injector Dynamics ID2600-XDS) and secondary injectors 2200–2600cc staged in under high load. Intake manifolds from Hypertune or Plazmaman support dual rails and staged injection.
Fuel supply must include either twin or triple in-tank pumps, or a surge tank with external pumps such as Bosch 044, Walbro 525, or Deatschwerks DW400. All components should be E85-rated, with -8AN or -10AN PTFE braided lines and a high-flow regulator like the Turbosmart FPR2000. Don’t forget upgraded fuel pump wiring and relays to support the increased current draw.
Intake, Exhaust, and Cooling
High-flow 3.5" intake piping with a cold air source is recommended to maximise airflow. The intercooler should be properly ducted and mounted to minimise pressure drop. On the exhaust side, a 3.5–4 inch turbo-back system with minimal bends ensures flow at high boost. Stainless steel systems are durable, while titanium offers weight savings.
Cooling is critical at this level. A dual-pass aluminium radiator, large oil cooler, and power steering cooler are strongly advised. Heat shielding, turbo blankets, and ceramic coatings all help keep under-bonnet temperatures manageable.
Transmission and Drivetrain
At 1000 horsepower, drivetrain integrity becomes a critical factor. The factory Getrag V160 six-speed manual can be used at this power level if it is in good condition, though it is operating at the upper end of its limits. For cars that will see frequent drag launches or circuit racing, a sequential transmission from PPG, Albins, or Samsonas, or an H-pattern dog box from PPG, is strongly recommended for durability and quicker shifting.
A multi-plate clutch assembly is essential, with triple-disc units from NPC, Exedy, or Tilton being common solutions. Supporting upgrades should include heavy-duty driveshafts and axles, along with aftermarket limited-slip differentials from OS Giken, Cusco, or Tomei for improved traction and reliability.
Supporting Mods and Reliability
The difference between a good build and a great one often comes down to supporting mods. Twin baffled catch cans, a proper crankcase ventilation system, and comprehensive monitoring (oil pressure fail-safes, coolant pressure sensors, etc.) ensure the engine stays healthy. Data displays such as the PRP CAN Gauge or Haltech IC7 add peace of mind.
E-throttle conversions with a Bosch DBW throttle body and pedal allow modern functions like idle control, traction strategies, and rolling anti-lag. Proper heat management with shielding, venting, and ducting will extend the life of critical components.
Budget Expectations
A well-built 1000hp Supra is not a cheap project. Depending on parts, fabrication, and tuning, expect to spend anywhere between $60,000 to $130,000 NZD or more. Cutting corners at this level almost always leads to costly failures.
Final Thoughts
The MK4 Supra has rightfully earned its reputation as one of the greatest tuner platforms ever made. With careful planning, the right parts, and expert tuning, a 1000hp build can be both brutally fast and surprisingly reliable. Whether your goal is drag racing, track use, or just owning one of the most powerful street cars around, the 2JZ-GTE platform has everything needed to deliver supercar performance with JDM soul.
