Aftermarket ECUs, PDMs, and Digital Dashes: What They Are and How They Can Benefit Your Build

Modern performance cars are moving further away from factory electronics. Aftermarket Engine Control Units (ECUs), Power Distribution Modules (PDMs), and Digital Dashes are now common upgrades in motorsport and high-performance road cars. Together, they give you more control, more data, cleaner wiring, and higher reliability than most OEM systems.

In this article, we’ll explain what each of these systems does, how they connect, and the functions available on their inputs and outputs. We’ll also compare four of the most popular brands — Link ECU, Haltech, MoTeC, and ECU Master

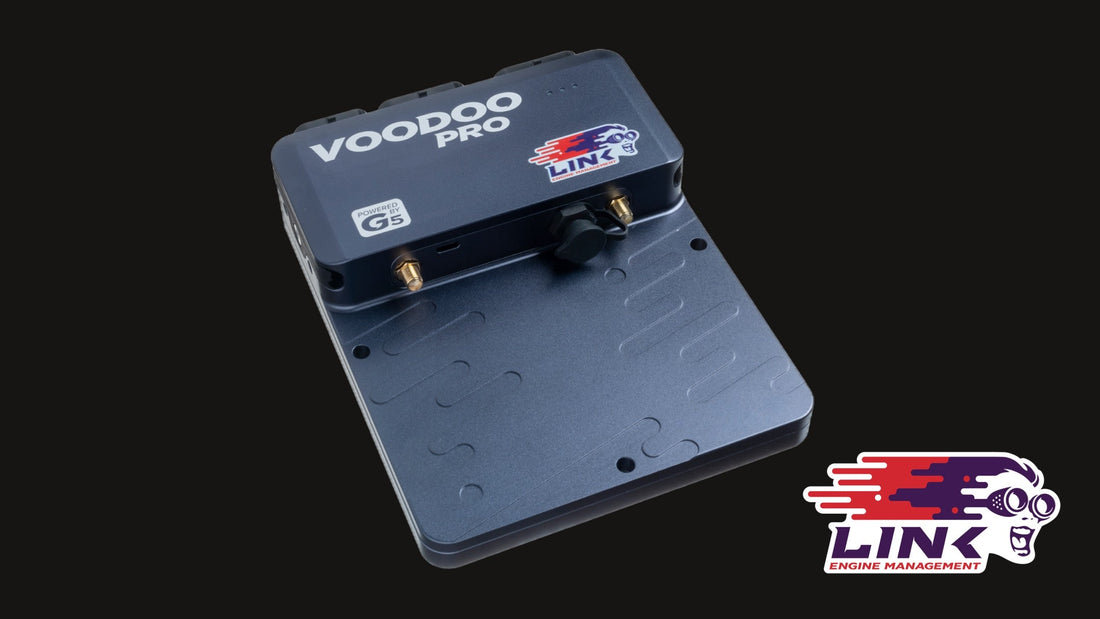

1. Engine Control Units (ECUs)

The ECU is the brain of the car. It monitors sensors, controls injectors and ignition, and manages advanced features like boost control, traction, and launch control. Unlike most factory ECUs, aftermarket systems are highly flexible — they allow the user (or tuner) to customise fuel, ignition, and auxiliary outputs as well as adding sensors for engine protection etc. This flexibility not only helps maximise performance but also improves reliability by adapting the tune to different conditions such as track, street, or drag racing.

Common ECU Pin Functions

• Injector Outputs
  Control fuel injectors. Normally one per cylinder, but spare injector channels can be reassigned to control devices like fans, pumps, solenoids, or warning lights.
• Ignition Outputs
  Drive ignition coils. Like injectors, spare ignition outputs can be reassigned to other tasks.
• Digital Inputs
  Digital inputs are on/off or square-wave type signals that the ECU can read. They are used for a variety of functions, including:

• Switches – For example, activating anti-lag, launch control, or other user-controlled features.
• Speed Sensors – Reading signals from wheel speed sensors, Turbo Speed sensors, cam or crank sensors, or other pulsed devices.

• Analog Inputs
  Analog inputs allow the ECU to read variable voltage signals from sensors, typically in the 0–5 V range, like throttle position (TPS), pedal position, manifold pressure (MAP), oil pressure, coolant pressure etc.
• Dedicated Temperature Inputs
  (e.g. Link ECUs) – designed for thermistor-type sensors like coolant temp, intake air temp, oil temp.
• Trigger Inputs (Crank and Cam)
  High-speed digital inputs for crank and cam position sensors. Critical for engine timing. Usually “Trigger 1” (crank) and “Trigger 2/Sync” (cam).
• Auxiliary Outputs
  General-purpose outputs for relays, lights, or solenoids. Typically low-side (ground-switching).
• Half-Bridge / Full-Bridge Outputs
  Found on higher-end ECUs. Used to drive motors directly, like drive-by-wire throttle bodies, stepper motors, or electronic pumps.
• SPI Inputs (Haltech specific)
  Can read both on/off or square-wave type signals (DI) or AN Inputs (0-5v Signal)
• CAN Bus Connection
  Two-wire network (CAN High and CAN Low) for communication with other devices like PDMs, dashes, wide bands, and keypads.

Repurposing Spare Injector & Ignition Outputs

If your ECU has more injector or ignition channels than you need, the spare ones don’t go to waste. They can be reassigned as general-purpose outputs.

Examples:

• Cooling fan control
• Fuel pump trigger
• Boost solenoid
• Shift light or warning lamp
• VVT solenoids

Choosing the Right ECU

Careful consideration is important when selecting an ECU for your build. Some key factors to think about include:

• Number of Cylinders – Ensure the ECU has enough injector and ignition channels for your engine.
• Number of Sensors – Count all the sensors you plan to use (TPS, MAP, wide band, temperature, pressure, etc.) and verify the ECU has enough inputs.
• Number of Outputs – Consider all devices the ECU will control directly (fans, pumps, boost solenoids, shift lights, etc.).
• Drive-By-Wire (DBW) – If you’re using an electronic throttle body, ensure the ECU supports half- or full-bridge outputs to drive it.
• Staged Injection – If your engine uses staged or secondary injection setups, make sure the ECU can control both stages properly.

Choosing the right ECU at the start will save you from costly upgrades or limitations later and ensures your build can run efficiently and reliably.



2. Power Distribution Modules (PDMs)

A Power Distribution Module (PDM) replaces traditional fuse and relay setups with solid-state electronic switching. Instead of wiring each device to individual relays and fuses, all circuits are controlled centrally by the PDM under the command of the ECU, keypads, or other CAN-enabled devices. This makes wiring cleaner, reduces weight, and adds advanced protection features.

Benefits of a PDM

• No mechanical relays or fuses: Reduces failure points, improves reliability, and provides resettable circuits.
• Programmable current limits: Each output can be limited to protect devices like fuel pumps, fans, ignition circuits, or solenoids.
• Centralised monitoring: Outputs, faults, and current draw are all monitored and reported over CAN to the ECU, dash, or keypads.
• Simpler wiring: A single main power feed from the battery supplies all outputs.
• CAN integration: Allows multiple CAN devices (ECU, dash, keypads) to control and monitor the PDM in real time.

Main Battery Connection

The main battery input is the heart of the PDM:

• Connect a heavy-gauge cable directly from the positive terminal of the battery (often via a master fuse or circuit breaker) to the PDM’s main power input.
• This cable supplies all the PDM’s outputs, so it must be sized for the total current your system may draw.
• A dedicated ground connection from the PDM to the chassis or battery negative ensures proper operation and accurate sensing.

Key Considerations:

• Use a master fuse or circuit breaker at the battery to protect the cable.
• Keep the cable as short as possible to reduce voltage drop.
• Ensure secure connections with crimped lugs or high-quality terminals.

Common PDM Pin Functions

Most PDMs have multiple configurable outputs and auxiliary pins:

• Switched Outputs: Low-side or high-side switching for devices like:
• Cooling fans
• Fuel pumps
• Ignition power
• Boost solenoids
• Water/meth injection pumps
• Water pumps
• Headlights
• Indicators/turn signals
• Auxiliary lights
• Other vehicle accessories controlled by the ECU, dash, or keypad
• Current Sense / Feedback Pins: Measure actual current draw for each output and report to ECU, dash, or other CAN devices.
• Ground Pins: Separate grounds for electronics and sensing circuits ensure stability and reduce noise.
• CAN High / CAN Low: Two-wire network allowing ECU, dash, keypads, or other CAN devices to send commands and receive status.
• Optional Analog Inputs: Some PDMs include analog inputs for temperature, pressure, or other sensors to expand functionality.

How a PDM Communicates

The PDM operates under the control of CAN devices such as the ECU, dash, or keypads:

1. A device (ECU, keypad, or dash) sends a command over CAN.
2. The PDM switches the requested output(s) on/off or modulates them via PWM.
3. The PDM monitors current draw and reports status back over CAN.
4. Any CAN-enabled device on the bus can read output status, detect faults, or log data.

Example:

• Engine coolant exceeds 95°C → ECU sends a CAN message → PDM turns on cooling fan → fan current reported back to dash and ECU.
• Driver presses a keypad button to turn on headlights → PDM switches output → status visible on dash.

This allows a centralised, intelligent power system that is fully integrated with all CAN-enabled devices.

Wiring Tips

• Use twisted pair wiring for CAN High and CAN Low to reduce interference.
• Place termination resistors (120 Ω) at each end of the CAN bus.
• Ensure all grounds are solid and low-resistance; the PDM relies on stable voltage references for current sensing.
• Document each pin allocation in a spread sheet.

3. Digital Dashes

A digital dash replaces or supplements the factory instrument cluster, providing real-time data and customisable displays. Digital dashes are especially popular in motorsport, track, drift, and high-performance street cars because they allow drivers to see exactly what the car is doing at a glance.

Key Features

• Custom Layouts: Display RPM, speed, oil/coolant pressure, temperatures, fuel levels, boost, AFR, and more.
• Warning Lights and Alarms: Programmable alarms for over boost, high temperature, low oil pressure, or other critical conditions.
• Shift Lights: Visual cues for optimal shift points.
• Data Logging: Record performance data for tuning or post-session analysis.
• Lap Timing & Predictive Lap Info: Some high-end dashes can log GPS data for track performance.

How Digital Dashes Communicate

Most modern digital dashes communicate over CAN Bus, which allows them to:

• Receive data from the ECU, such as engine parameters, trigger status, and sensor readings.
• Display PDM output status, including current draw and fault notifications.
• Interact with keypads or other CAN devices to allow driver control over settings or modes.
• Log data for analysis without interfering with ECU operation.

Example Inputs and Outputs

• RPM & Engine Data: Pulled directly from the ECU’s outputs or CAN messages.
• Temperatures & Pressures: Can display coolant, oil, intake air, or exhaust gas temperatures via ECU or PDM analog inputs.
• Switch States: Brake, clutch, or mode switches can be read via ECU or direct CAN devices.
• Alarms: Programmed thresholds trigger warning lights or buzzers.

Special Consideration When Removing Factory Dash

If you are removing the factory dash, you might need to add an external light or resistor. This is because some alternators require an excitation signal from the factory dash to begin charging. Without it, the alternator may not charge the battery properly.

• A simple 5 W, 100 Ω resistor or a small dashboard indicator light can be connected in place of the original dash excitation wire to provide the necessary signal.
• This ensures the alternator begins charging and the electrical system functions correctly, even without the factory dash connected.

Benefits

• Real-time feedback: Drivers can see exactly what the engine, electrical system, and sensors are doing.
• Customisable displays: Only show what is relevant for the build or driver preference.
• Integrated monitoring: Works seamlessly with ECU, PDM, and other CAN devices, reducing separate wiring.
• Simplifies troubleshooting: CAN-based dashboards can show faults from the ECU or PDM directly, reducing guesswork.



4. CAN Bus and Expansion Devices

The CAN Bus is the communication backbone for modern aftermarket electronics. It allows multiple devices to talk to each other with just two wires:

• CAN High (CAN-H)
• CAN Low (CAN-L)

Wiring Basics

• Twist Rate: 20–40 twists per meter (1 twist every 25–50mm).
• Termination: 120Ω resistor at each end of the bus (total 60Ω across lines). Many devices have built-in resistors you can enable/disable.
• Layout: Daisy-chain (not star wiring).

Common CAN Devices

In modern builds, multiple devices communicate over CAN Bus to simplify wiring and provide real-time monitoring and control. Common CAN-enabled devices include:

• ECU (Engine Control Unit): Sends and receives engine data, sensor readings, and control commands.
• PDM (Power Distribution Module): Controls switched outputs like fans, pumps, lights, and reports current/fault status.
• Digital Dash: Displays engine data, PDM output status, alarms, and logs performance data.
• CAN Battery Isolator: Electronically disconnects or reconnects the battery via CAN commands, allowing remote shutdown, safety isolation, or controlled power cycling of the vehicle’s electrical system.
• Keypads and Switch Panels: Send commands to the ECU or PDM to activate functions like nitrous, launch control, or auxiliary systems.
• Wideband Controllers / Sensors: Provide air-fuel ratio data to ECU and dash for tuning and monitoring.

Using CAN Bus allows these devices to communicate on a single two-wire network, reducing loom complexity and enabling real-time data sharing between multiple systems



ECU ↔ PDM ↔ Dash Example

• ECU decides when a fan should run.
• Sends command via CAN to PDM.
• PDM powers fan and reports current.
• Dash displays fan status and current draw.

This level of integration makes wiring simpler, smarter, and easier to troubleshoot.

5. Example Wiring Scenarios (Generic)

Here’s how some of the most common connections work:

• Injectors – 12V shared feed, ECU grounds each injector via injector outputs.
• Ignition Coils – 12V feed to coils, ECU sends trigger via ignition outputs.
• Temp Sensors – Two-wire sensors: one to ECU ground, one to AN Temp input.
• Digital Inputs – Switch to ground or 12V; ECU detects on/off state.
• Aux Output (Fan) – ECU output drives relay or PDM channel to power fan.
• CAN Bus – ECU, dash, PDM, wide band all wired to CAN-H/L twisted pair with resistors at ends.
• Trigger Inputs – Crank sensor wired to Trigger 1, cam sensor wired to Trigger 2/Sync.

6. Why Upgrade?

Switching to an aftermarket ECU + PDM + digital dash setup has huge benefits:

• More control: Tailor engine management to your exact setup.
• Reliability: Solid-state electronics and fewer relays.
• Data: Log everything for tuning, diagnostics, and racing.
• Flexibility: Add features like boost-by-gear, traction, launch control, or nitrous.
• Cleaner installs: Lighter, neater wiring with CAN Bus.

Final Thoughts

Aftermarket ECUs, PDMs, and digital dashes work best as a system. The ECU controls the engine and makes decisions, the PDM distributes power safely, and the dash gives you the information you need. The CAN Bus links them all together, while spare ECU outputs and expansion devices ensure you never run out of flexibility.

For street, drift, drag, or track builds, this trio of electronics is one of the best upgrades you can make — not just for performance, but for reliability, safety, and future-proofing your wiring.
